L30 SERIES 7

Completely redesigned chain-driven planetary drive with no chain tensioner.

New stronger timing belt.

Upgraded shafts, seals and bearings.

New lighter timing pulleys for better power transmission.

New 2-piece aluminum main belt housing with belt inspection cover for longer belt life and less maintenance.

Download Brochure
Multimedia Files
Book a Demo
CLICK ON THE IMAGE TO VIEW IN DETAIL
L30 SERIES 7
IMG 8520
IMG 8534
IMG 8574
IMG 8625

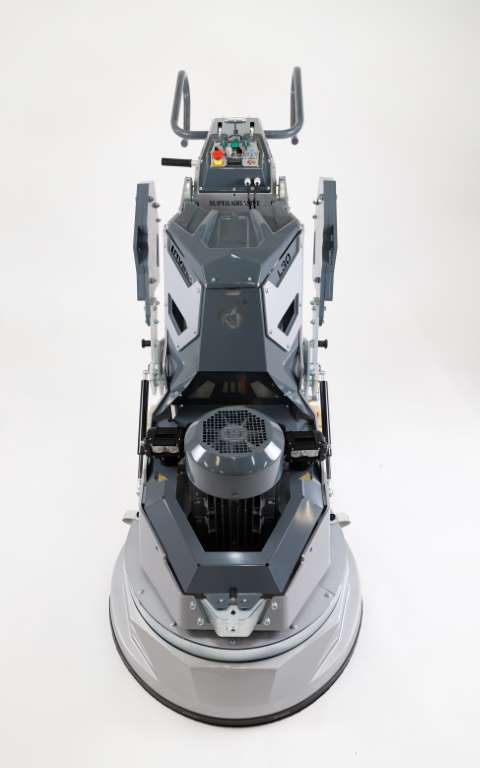

IMG 8632
IMG 8936
IMG 8950
L30 8457 1 Transp 2
L30 Tools 8756
L30 Front
L30 Lifted Heads
S7new

 L30L Productivity rates

Grinding and Polishing Concrete 7 Step 25-30 Sqm/h
Floor Preparation 1 Step 100-130 Sqm/h
Polishing Terrazzo 5 Step 30-40 Sqm/h
Resin, varnish and coating removal 1 Step  100-150 Sqm/h
Grinding and Polishing Marble 5 Step 20-30 Sqm/h
Grinding and Polishing Granite 7 Step 9-12 Sqm/h

Technical data

Power 11 kW – 15 Hp Tool connection Quick Change
Working Width 800mm Tool holder diameter 3x335mm / 13″
Voltage 400 V – 50/60 Hz Application Wet / Dry
Weight 412 Kg Dust-vacuum  Yes
Amperage Max 30 Amp Water Tank capacity 20 Lt
Variable Speed 400 – 1200 rpm  Water Pump Yes

NEW WEIGHTS FOR FASTER POSITION CHANGE

Redesigned frame with integrated weights allowing fast and easy changes to balance the weight of the machine for the working pressure.

NEW HANDLE DESIGN

The handle has two joints with multiple positions for faster adjustability and rubber bushing at head attachment points for less vibrations.

WATER TANK CAP WITH STORAGE COMPARTMENT

A cap on the water tank to avoid spilling water when tilting machine back. The water system is all manual with two valves to choose water source and adjust the water flow. Plastic cover on the water tank with a storage compartment.

3 LED LIGHTS FOR MONITORING THE FLOOR

2 LED light with a magnet in the front improves visibility, and a third LED light attached in the back of the machine near the floor helps monitor the scratch pattern.

NEW, HEAVY DUTY RUBBER TIRES

This new feature make grinder transportation and loading easier.

|
